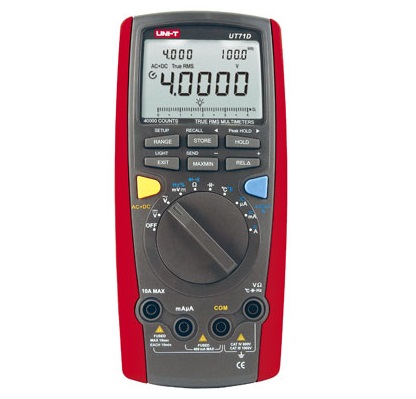

Multímetro digital con Auto rango, mide voltaje AC/ DC, corriente AC/ DC, resistencia, capacitancia, frecuencia, ciclo de dureza, temperatura, diodo, continuidad. Con True RMS.
SPECIFICATIONS
| Specifications | ||
| Model | UT71D | |
| DC Voltage(V) | 400mV/4V/40V/400V/1000V | ±(0.025%+5) |
| AC Voltage(V) | 4V/40V/400V/1000V | ±(0.4%+30) |
| DC Current(V) | 400μA/4000μA/40mA/400mA/10A | ±(0.1%+15) |
| AC Current(A) | 400μA/4000μA/40mA/400mA/10A | ±(0.7%+15) |
| Resistance(Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(0.3%+8) |
| Capacitance(F) | 40nF/400nF/4μF/40μF/400μF/4000μF/4mF/40mF | ±(1%+20) |
| Frequency(Hz) | 40Hz~400MHz | ±(0.01%+8) |
| Temperature(°C) | -40°C~1000°C | ±(1%+30) |
| Temperature(°F) | -40°C~1832°F | ±(1.5%+50) |
| Features | ||
| Display Count | 39999 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100KHz | √ |
| Duty Cycle(5Hz-2kHz) | 0%~90% | ±(1%+30) |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | 9999 | |
| USB Interface | √ | |
| 4-20mA% | 0%~100% | ±(1%+50) |
| Analogue Bar Graph | √ | |
| Input Impedance for DCV | DC 200mV: Around 2.5GΩ, All Other Range: 10MΩ | √ |
| Power | 9VBatteries (6F22) | |
Enlace al fabricante
Palabras claves: multímetro, True RMS, tester
| Fabricante | UNI-T |
| Frecuencia | Si |
| Diodo | Si |
| RPM | No |
| Duty | Si |
| Continuidad | Si |
| NCV | No |
| Beta BJT | No |
| Interfaz Bluetooth | Si |
| Interfaz USB | Si |
| Tipo de equipo | Portatil |
| Voltaje AC | Si |
| Voltaje DC | Si |
| Corriente AC | Si |
| Corriente DC | Si |
| Resistividad | Si |
| Capacitancia | Si |
| Temperatura | Si |
| Selección de rango | Automático |
