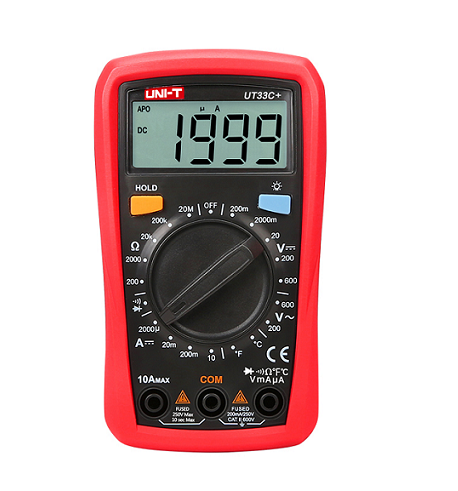

Multímetro digital, mide voltaje DC/AC, corriente DC, resistencia, diodo, continuidad y capacitancia.
SPECIFICATIONS
| Specifications | Range | Best Accuracy |
| Model | UT33C+ | |
| DC Voltage(V) | 200mV～600V | ±(0.5%+3) |
| AC Voltage(V) | 200mV～600V | |
| 200V～600V | ±(1.2%+3) | |
| DC Current(A) | 2000μA～10A | NA |
| Resistance(Ω) | 200Ω/2000Ω/20KΩ/200KΩ/20MΩ/200MΩ | ±(0.8%+2) |
GENERAL CHARACTERISTICS
| Features | ||
| Display Count | 1999 | |
| Manual Range | √ | |
| Diode | √ | |
| Data Hold | √ | |
| Continuity Buzzer | √ | |
| LCD Backlight | √ | |
| Low Battery Indication | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| Power | AAA Battery | |
| LCD Size | 66mm x 51mm | |
| Product Size | 131mm x 95mm x 58mm | |
Enlace al fabricante
Palabras claves: multímetro, tester
| Fabricante | UNI-T |
| Frecuencia | Si |
| Diodo | Si |
| RPM | No |
| Duty | No |
| Continuidad | Si |
| NCV | No |
| Beta BJT | No |
| Interfaz Bluetooth | No |
| Interfaz USB | No |
| Tipo de equipo | Portatil |
| Voltaje AC | Si |
| Voltaje DC | Si |
| Corriente AC | No |
| Corriente DC | Si |
| Resistividad | Si |
| Capacitancia | No |
| Temperatura | Si |
| Selección de rango | Manual |
UT33+ UT131 Series Flyer.pdf
Download
