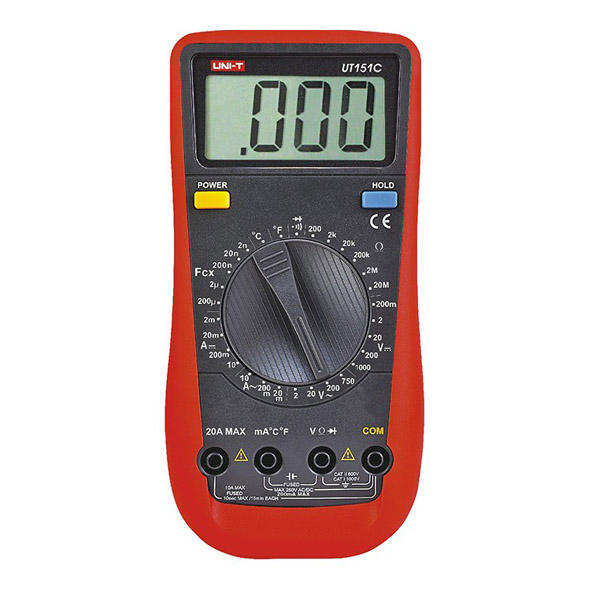

Multímetro digital estable, de rango manual, de alta confiabilidad, mide voltaje AC/ DC, corriente AC/ DC, resistencia, capacitancia, temperatura, diodo, continuidad.
Especificaciones:
DC Voltage: 200mV/2V/20V/200V/600V +/- (0.5%+ 1)
AC Voltage: 2V/20V/200V/600V +/- (0.8%+ 3)
DC Current: 200μA/2mA/20mA/200mA/10A +/- (0.8%+ 1)
AC Current: 200μA/2mA/20mA/200mA/10A +/- (1%+ 3)
Resistance: 200 Ohm/2kOhm/20kOhm/200kOhm/2MOhm/20MOhm/200MOhm +/- (1%+ 2)
Capacitance: 2nF/20nF/200nF/2uF/200uF +/- (4%+ 3)
Temperature: - 40°C ~ 1000°C +/- (3%+ 9)
Funciones Especiales:
Manual Range
Diode
Continuity Buzzer
Data Hold
Low Battery Indication
Input Impedance for DC
Display count 2000
Especificaciones Generales:
Power: 9V Battery (6F22)
LCD Size: 63mm x 29mm
Product Colour: Red and Grey
Product Net Weight: 300g
Product Size: 186mm x 91mm x 39mm
Standard Accessories: Test Lead, Battery
Palabras claves: multímetro, tester
| Fabricante | UNI-T |
| Frecuencia | Si |
| Diodo | Si |
| RPM | No |
| Duty | No |
| Continuidad | Si |
| NCV | No |
| Beta BJT | Si |
| Interfaz Bluetooth | No |
| Interfaz USB | No |
| Tipo de equipo | Portatil |
| Voltaje AC | Si |
| Voltaje DC | Si |
| Corriente AC | Si |
| Corriente DC | Si |
| Resistividad | Si |
| Capacitancia | Si |
| Temperatura | Si |
| Selección de rango | Manual |
